HCTE, HRTE High Temperature
High Temperature Conical & Rectangular Elastomer
This black Elastomer rubber is an alternative to the high temperature HCTR & HRTR Silicone rubber product.
The range of available sizes starts with a minimum size of 008x008 up to 470x470 mils.

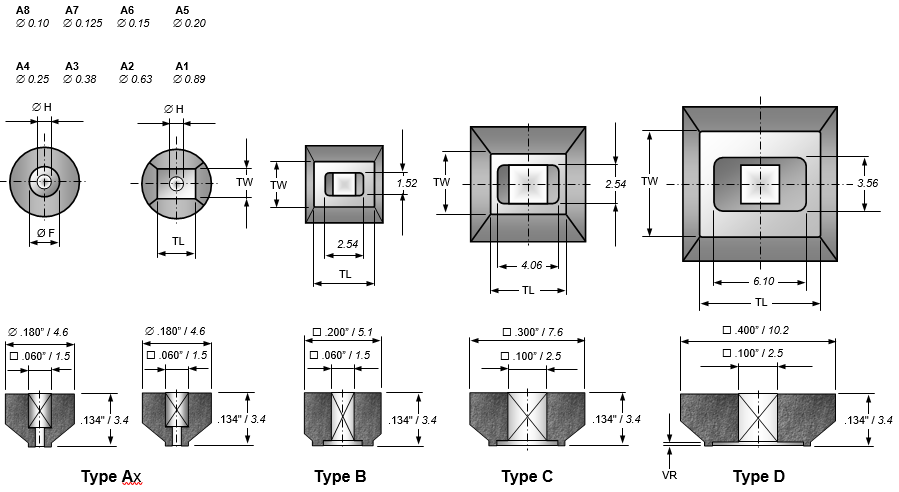

Every type is build from a family of 4 distinct types identified as: A B C D.
The types A and B are compatible with the shank having the square insert type A/B while the others are compatible with the shank with square insert type C/D.
| Denomination | Properties |
| HCTE | High Temp Conical |
| HRTE | High Temp Rectangular Vacuum Tip Elastomer |
| Material | Black FKM |
| Hardness | 85 Shore A |
| Size | Face Diameter/Length 8-470 mils (0.20-12 mm) |
| Elect. Resistance | ESD safe, 104-105 Ohm |
| Temp. Resistance | High Temp. Applications, 250°C |

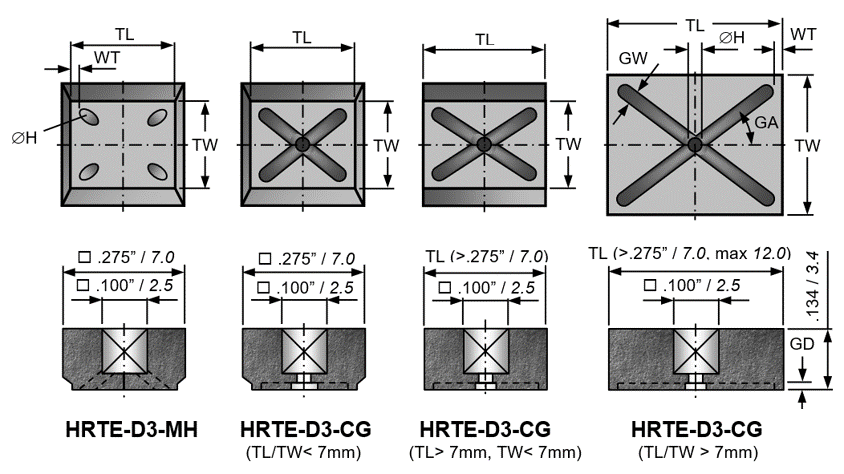

| Options | Multi-Holes/ Cross Groove for Thin Die/ Countersunk for LED |
