FCTR, FRTR Rubber Tip
FlipChip Conical & Rectangular Tip Rubber

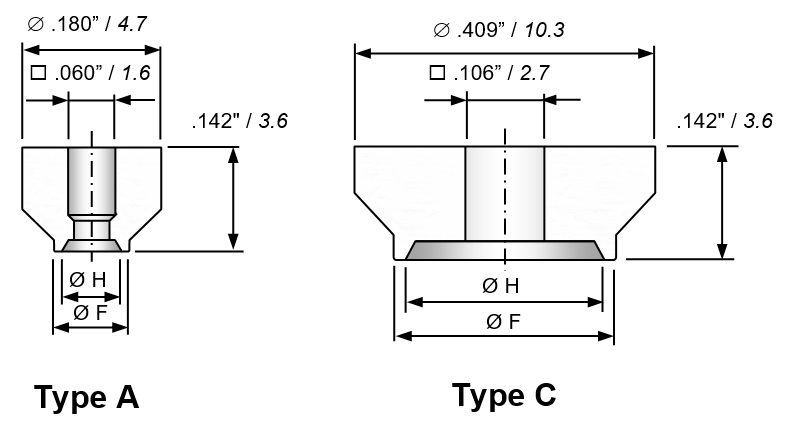

FCTR has a round contact face. It is available in size ranging from 30 mils to 180 mils for type A and 200 mils to 400 mils for type C. FRTR has a rectangular contact face, a few sizes are available in this configuration. Due to the softness of this material, these tools are ideal to pick dies with bumped surface. Special shanks have to be used with those tips.
|
Denomination |
Properties |
| FCTR | FlipChip Conical Vacuum Tip |
| FRTR | FlipChip Rectangular Vacuum Tip |
| Material | White Thermoplastic Elastomer |
| Hardness | 40 - 55 Shore A |
| Size | Face Diameter 30-400 mils (0.76-10 mm) |
| Electr. Resistance | ESD safe, 107-1010 Ohm |
| Temp. Resistance |
Room Temperature Applications, 100°C |
| Options | AS: Anti-Stick feature available, Multi- Holes Pad |
