BPCT, BPRT Black


Black Plastic Conical Vacuum Tip

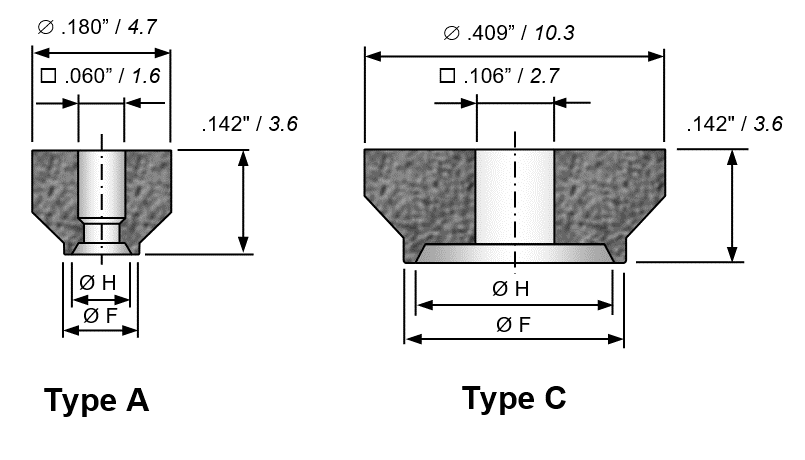

BPCT has a round contact face. It is available in size ranging from 20 mils to 180 mils for type A and 200 mils to 400 mils for type C. BPRT has a rectangular contact face, a few sizes are available in this configuration.

.





Denomination

Properties

BPCT

Black Plastic Conical Vacuum Tip
BPRT Black Plastic Rectangular Vacuum Tip
Material Black Thermoplastic Elastomer
Hardness 85 Shore A
Size Face Diameter 20-400 mils (0.50-10 mm)
Electr. Resistance ESD safe, 108-1010 Ohm
Temp. Resistance Room Temp. Applications, 100°C
Option AS: Anti-Stick feature available.
