SEST Stainless Epoxy
SEST and WEST

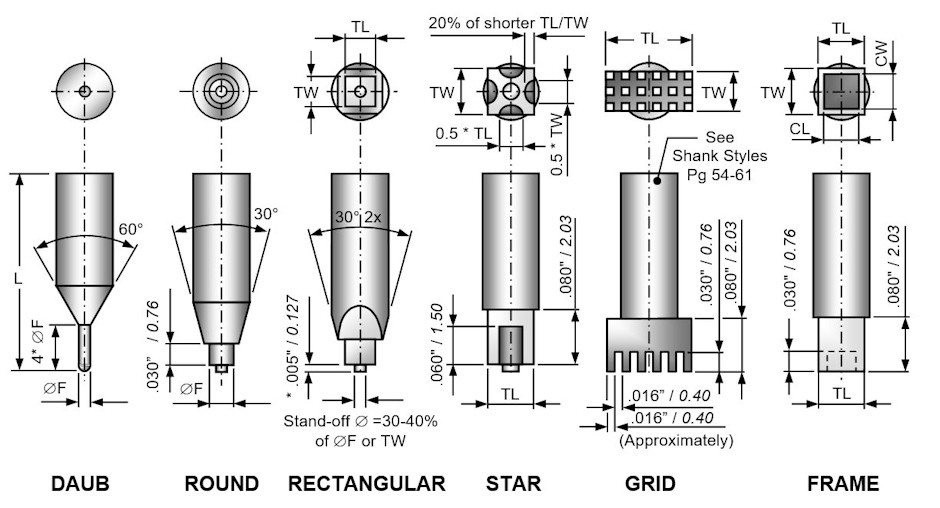

The selection of stamping tool profile is based on the die size. Basic recommendations:
DAUB: Die size < 0.30mm
ROUND: Die size < 0.80mm
RECTANGULAR: Die size >0.60mm <1.10mm
STAR: Die size >1.00mm <6.00mm
GRID: Die size > 2.50mm
| Denomination | Properties |
| SEST | Stainless Epoxy Stamping Tool |
| WEST | Tungsten Carbide Epoxy Stamping |
| Tool Material | Stainless Steel or WC |
| Size | From 0.080mm up |
| Electr. Resistance | Conductors |
| Temp. Resistance | High Temperature compatible, 450°C |
| Tip Options Std | DAUB, ROUND, RECT, STAR, GRID |
| Tip Options Other | FRAME, SPRING |
