PUN


Push-Up Needles

Die Push-Up needles or Die Ejector Pins are used in automatic die bonding machines. The Push-Up Needles push up the die through the expanding PVC adhesive film allowing a collet or pick-up tool to seize the die. The smooth, highly polished taper and small angle allow gentle penetration in the film with little movement of the film. Depending on the size of the die, 1 or more needles are required where reproducibility from needle to needle is critical.

push up needle   push-up needle   push upd needle

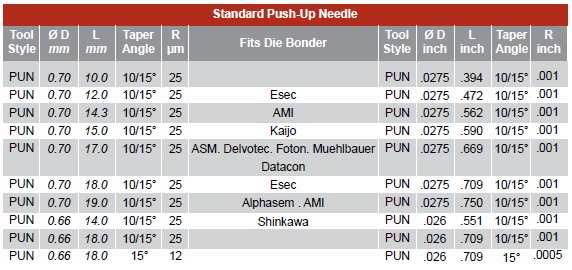

Standard PUN

Standard PUN

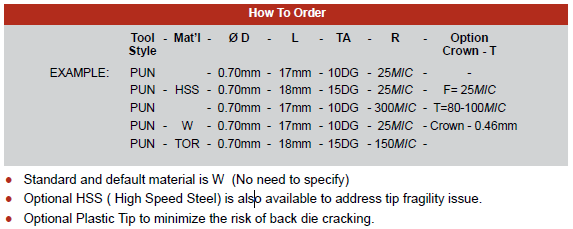

How to OrderHow to Order the PUN









Do you have additional questions regarding our Push-Up Needles?

No worries, we are here to support you. Please send your request by clicking on the button below. Thank you very much.

Place your request here
