Pickup Tools
Vacuum Pick-Up Tools - Rubber, Plastic, Metallic, Tungsten Carbide or Ceramic
Depending on the sensitivity of the die surface, the contact force or selective contact area will determine the choice of material for your pick up tools. Soft, medium and hard materials are proposed.
A tool designed to pick-up, hold, transfer and place a die or a component on a substrate. The tool may be a replaceable tip only or composed of a body, called shank, adapted to a specific die bonder or pick & place equipment and a tip making the physical contact with the die or device. No matter how sensitive, small or exotic the die, we have a dedicated tool or we are ready to design it.
Standard Replaceable Tips :

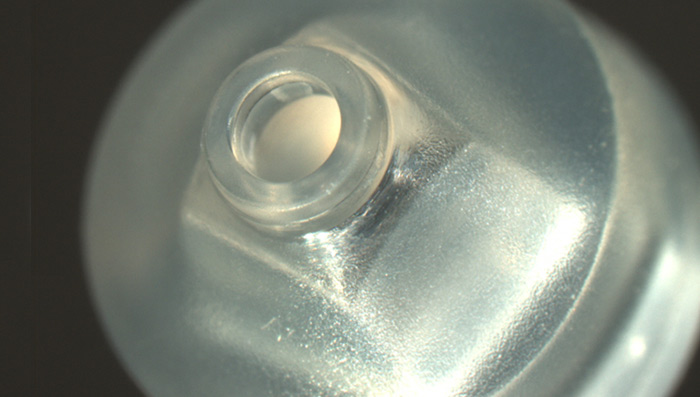

PCTR, PRTR : Pure Conical & Rectangular Vacuum Pick-Up Tool Tip Rubber
Room Temperature Translucent Thermoplastic Elastomer
- Very High Purity
- Static Dissipative
- Small Wall Size
- Leaves no Dark Mark on Die
- Flexible Design
- Molded Accurately to Final Shape
- Very Reproducible Geometry
- Clean Packing
- Customer Shape on Request
- Recyclable Material

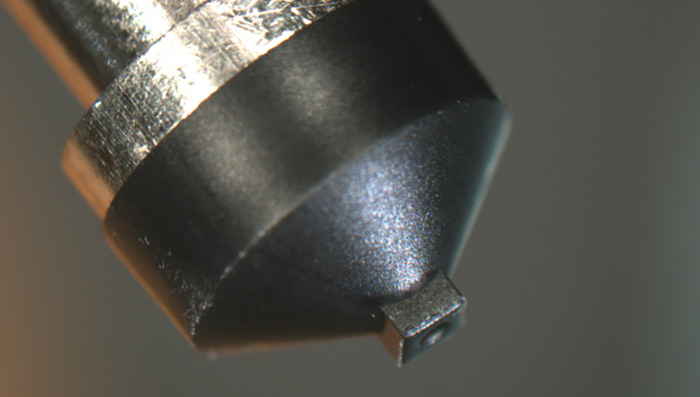

BPCT, BPRT : Black Plastic Conical & Rectangular Vacuum Pick-Up Tool Tip
Room Temperature Black Thermoplastic Elastomer
- Very High Purity
- Static Dissipative
- Small Wall Size
- Leaves no Dark Mark on Die
- Flexible Design
- Molded Accurately to Final Shape
- Very Reproducible Geometry
- Clean Packing
- Customer Shape on Request
- Recyclable Material

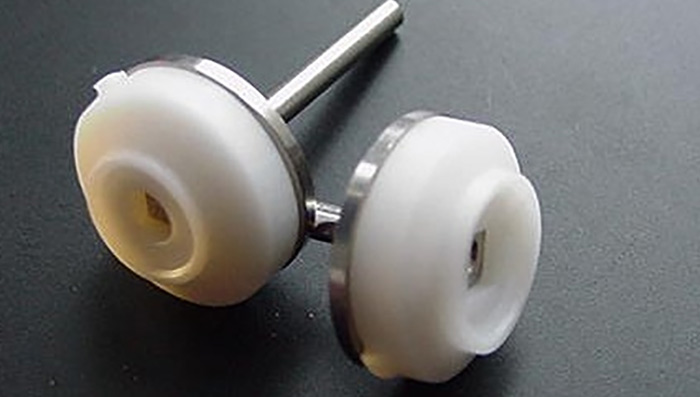

FCTR, FRTR : FlipChip Conical & Rectangular Tip Rubber
Room Temperature White Thermoplastic Elastomer
- Very High Purity
- Static Dissipative
- Very Soft Material, Ideal for Flipchip Die
- Minimizes Vacuum Loss on Bumped Die
- Leaves no Dark Mark on Die
- Clean Packing
- Customer Shape on Request
- Recyclable Material

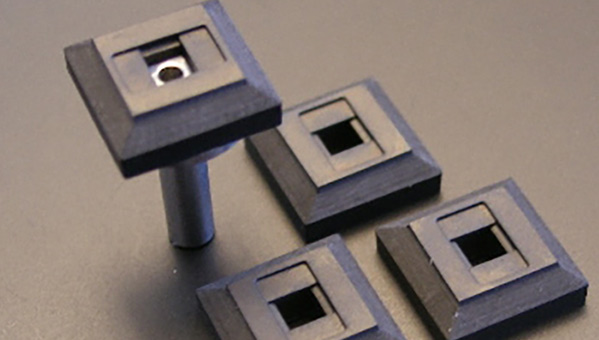

CTR, RTR : Conical & Rectangular Tip Rubber
Room Temperature Black Nitrile Rubber
- Static Dissipative
- Custom Outer Dimensions
- Proven Design
- Countersunk Option

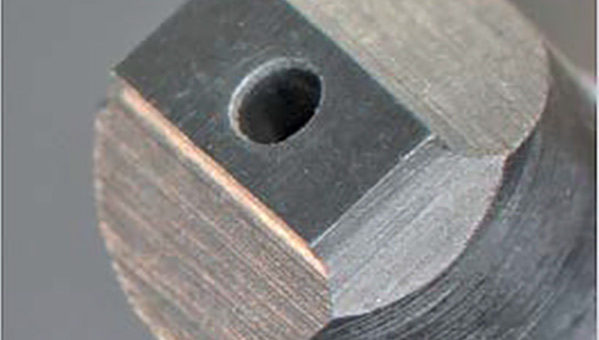

HCTR, HRTR : High temperature Conical & Rectangular Tip Rubber
High Temperature Black Silicone Rubber
- Static Dissipative
- Custom Outer Dimensions
- Proven Design
- Countersunk Option

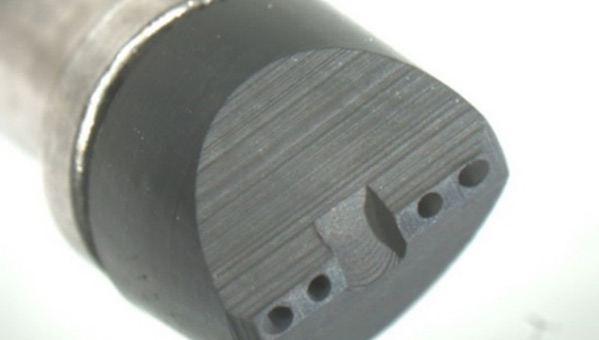

HCTE, HRTE : High Temperature Conical & Rectangular Elastomer
HighTemperature Black Elastomer
- Static Dissipative
- Custom Outer Dimensions
- Minimizes Sticky Die Effect
- High Quality Material
- Countersunk Option
- Alternative to Silicone Rubber
SC, HSC : Suction & High Temperature Suction Cup
Room and High Temperature Nitrile & Silicone Rubber

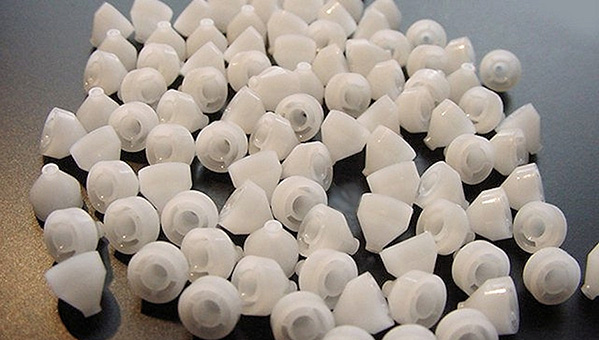

RPCT : Replaceable Plastic Conical Tip
Room Temperature Hard White Plastic (Delrin)
- Low Friction Coefficient
- No Sticky Die Effect
- Molded to Final Shape
- Economical Solution

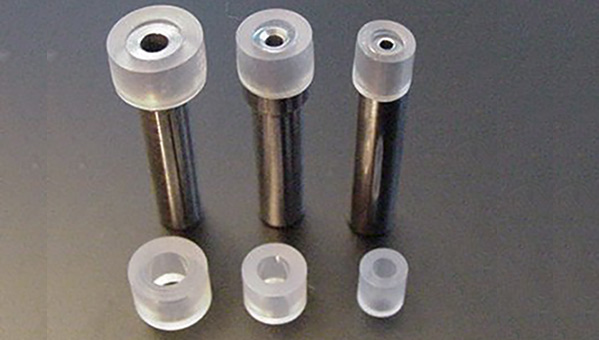

ST : Silicone Tip
Soft High Temperature Silicone Tip
- Slimline for Easy Acces
- Very Soft Touch
- High Temperature Resistance
- Size Range 40 to 200 mils

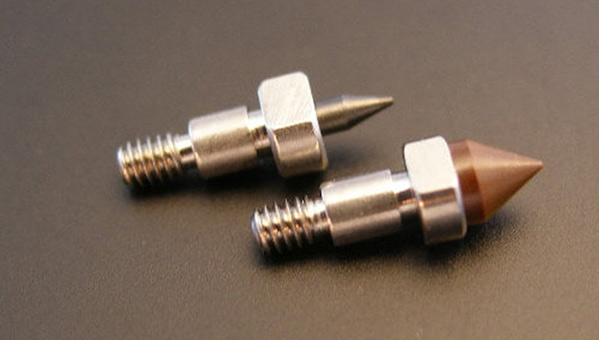

2151-CT : Universal Threaded Conical Tip
Plastic Conical Tip
- Quick Tool Set-Up
- Various Choice of Plastic Tip Materials
Single or 2 Piece Tool Construction:

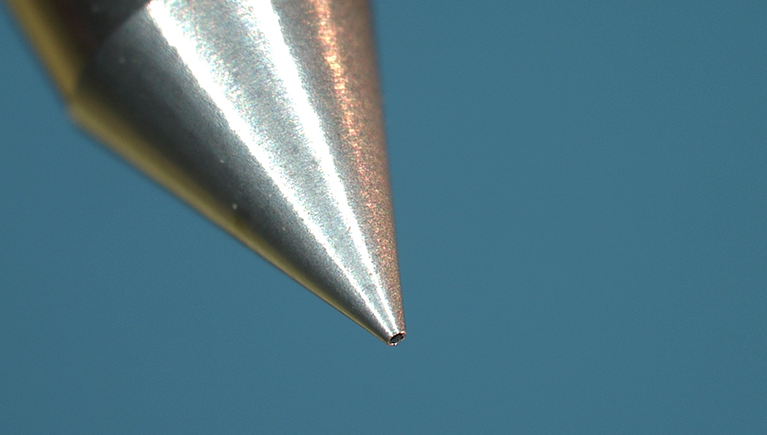

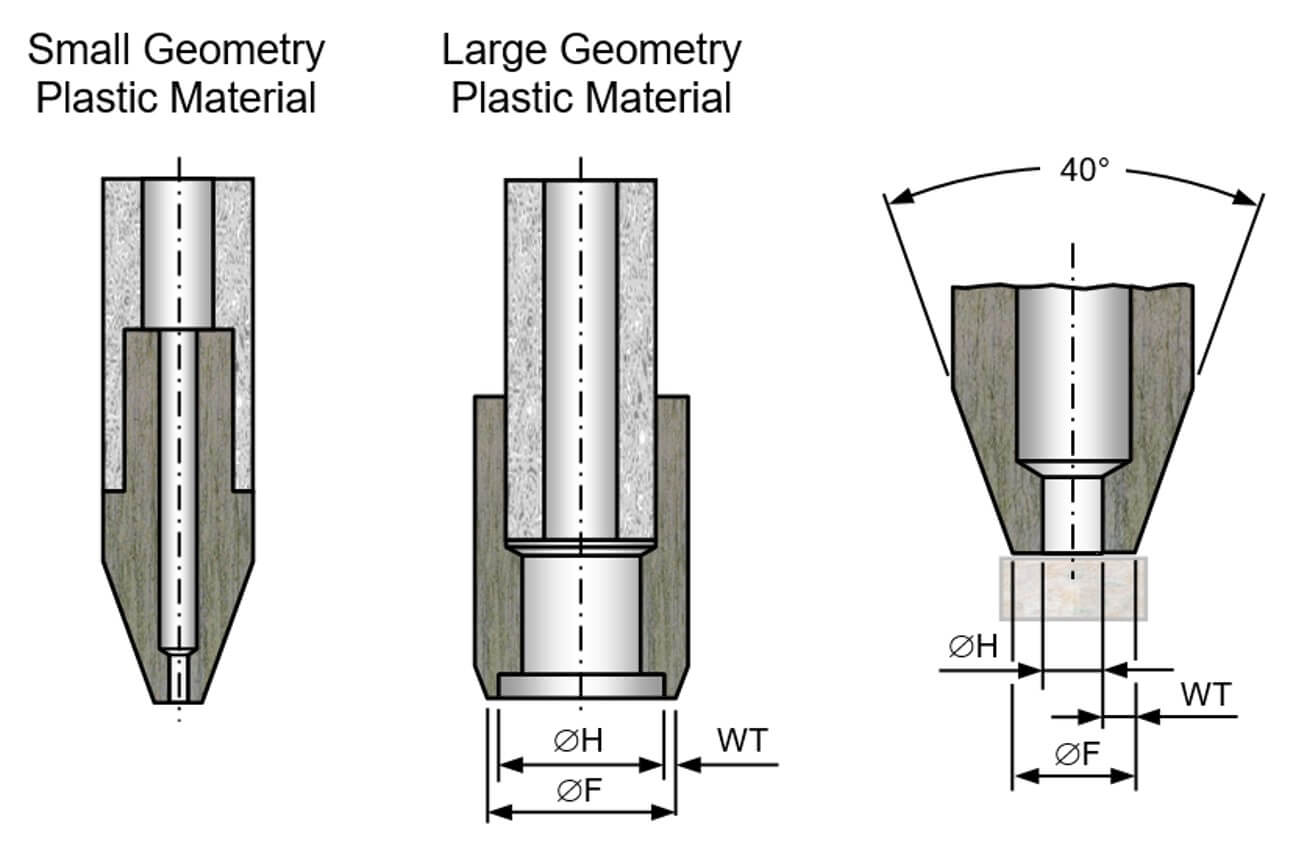

CT : Conical Tip
Plastic, Metallic or Ceramic Conical Tip
- Various Choice of Tip Materials
- Very Small Face and Hole Diameter Achievable
- Custom Tip Configurations
- Easy Access to Poor Clearance Applications

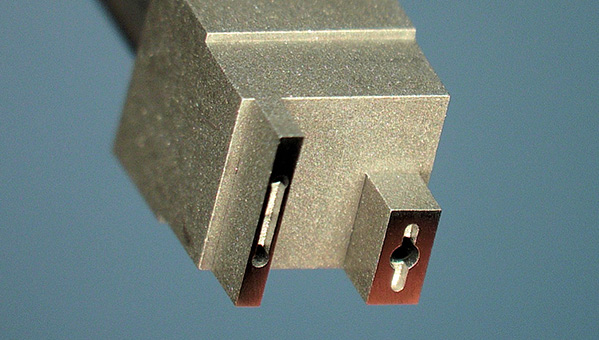

RT : Rectangular Tip
Plastic, Metallic or Ceramic Rectangular Tip
- Various Choice of Tip Materials
- Very Small Face and Hole Size Achievable
- Custom Tip Configurations
- Easy Access to Poor Clearance Applications

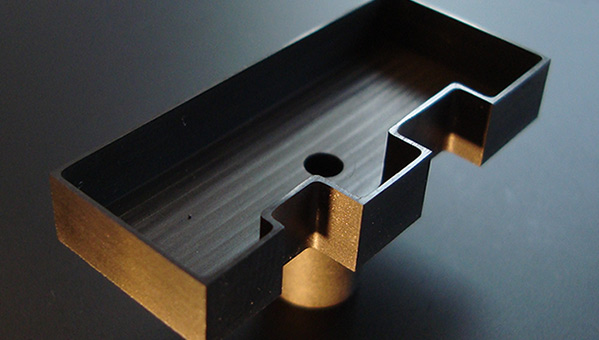

PL : Peripheral Pick-Up Tool
Plastic or Metallic Peripheral Tip
- Various Choice of Tip Materials
- Very Limited Contact Surface with Die
- Custom Tip Configurations
- Increased Vacuum Force
IP, IPIR, IPNC, IPCR : Inverted Pyramid Die Collets
Four Sided Tungsten Carbide Die Collet
Inverted Pyramid (IP), Options are Inner relief Corner (IPIR), Notched Corner Relief (IPNC) and Corner Relief (IPCR)
- No Contact With Die Surface
- Very Small Face and Hole Diameter Achievable
- Custom Tip Configurations
- Easy Access to Poor Clearance Applications

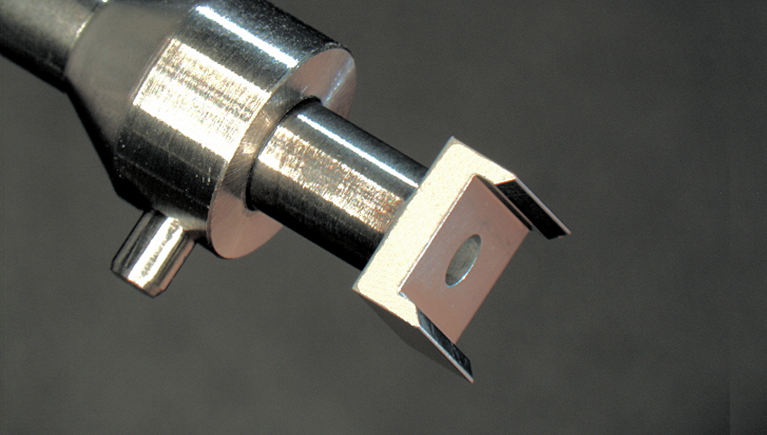

CH, Channel Type Die Collet
Two Sided Inverted Channel Die Collet
- No Contact With Die Surface
- Very Small Face and Hole Diameter Achievable
- Tool is shorter than Die in one Direction
- Custom Tip Configurations
- Easy Access to Poor Clearance Applications
Custom Tools for special Pick-Up Applications
Custom Pick-Up Tools
Wherever standard tools do not fulfill customer requirements, SPT is designing and producing many other special and exotic tools. Examples include parallel compliant tips, spring-loaded assemblies, heat conductive or resistive constructions etc.
SHANK, Steel Tip Holder
Tip holder or body adapted to a specific Die Bonder Head and used normally together with replaceable tips. Most Die Bonders have a dedicated shank geometry and tool length. For replaceable tips, the shank is to be ordered separately while it is part of the tool for a two-piece construction tool.
